Cruise & Ferry
The Evica S300 range is the next evolution in Search Light Surveillance systems. With a high-powered, high-intensity LED searchlight specifically designed at its core.
This is the only search and surveillance system on the market with TRIPLE S™️ (SEARCH, SEEK & SECURE) technology inbuilt. The TRIPLE S™️ system was designed to see beyond the traditional searchlight, giving it superior safety and security benefits.
Evicas S300 range provides the ultimate in marine Search lIght and Surveillance systems.
Safety, security surveillance recording and storage facilities, man overboard, detect trace and track, collision avoidance, search and rescue and piracy detection and deterrence.
Triple S Vision System

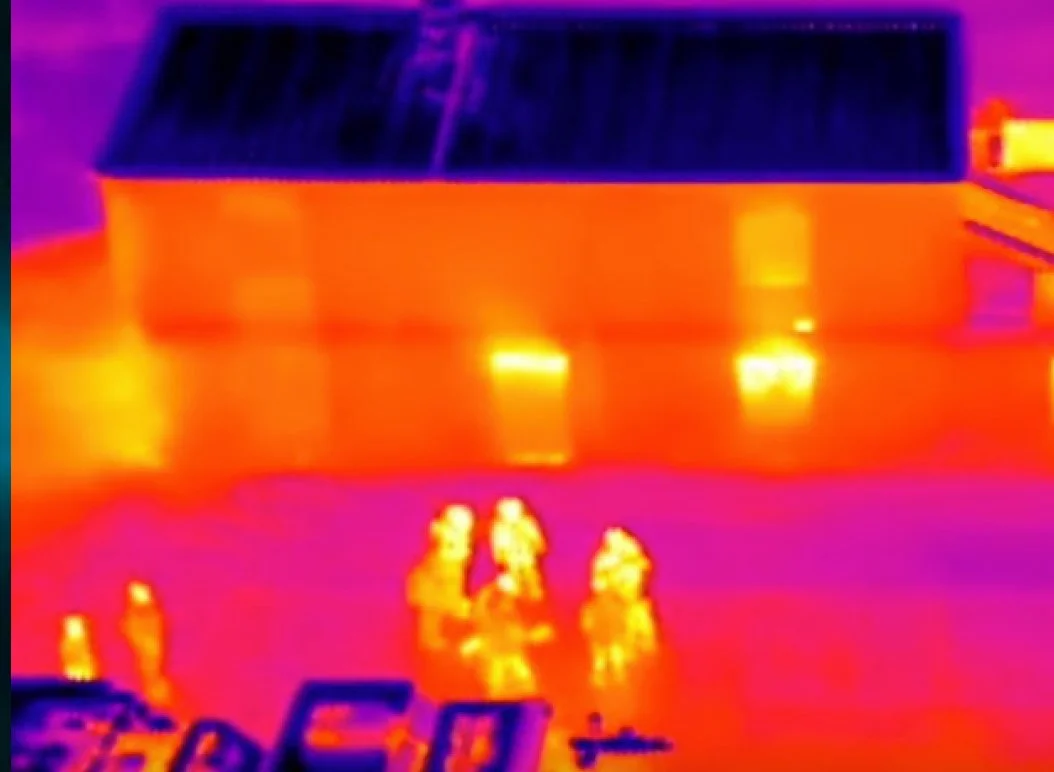

Inbuilt Thermal technology to see beyond the traditional searchlight
Thermal and or visible cameras can also be fully integrated into the system enabling autonomous control of the pan/tilt system, this unique feature will assist in the following applications:
Surveillance ensuring safety and security, surveillance footage recording and storage
Man overboard detect and track
Collision avoidance
Search and rescue
Piracy detection and deterrence
Recording capability with cloud-based storage for surveillance due to in built Wi-Fi network.
At its core a modern, powerful searchlight.
The Evica S300 integrates the latest advanced phosphor LED technology with a range in excess of 2 nautical miles with an output of 30,000 Lumens.
It features the latest in proprietary cooling systems which enable output power of up to 300 watts, equivalent to 2000 watts consumed by traditional halogen light sources.
Evica’s innovative hybrid Fresnel lenses employ total internal
reflection to efficiently transmit a focused high-intensity beam of light to the intended target.
UNPARALLELED SAFETY AND SECURITY THROUGHOUT
The system can alert the operator of floating debris, ice or oil spills in the water and the final feature, deterrence and delay, which deploys a strobe feature at 9 hertz to inhibit any potential intruder.
Due to the efficiency and intensity of the strobe the operator would manually enable the strobe deployment taking responsibility once alerted.
The software can also identify any suspicious activity outside normal movement and alert the operator.
The stabalised Servo direct drive pan tilt system enables the operator to search and track a selected target with a smooth and precise 360 degree succinct operation.
All procedures can be monitored during docking, loading and unloading of cargo, while at sea or as the vessel lays at anchor.
When the Vessel is underway the S300 can be set to surveillance mode, utilizing the Flir element only. This enables the operator to have visibility of the deck in conditions with reduced visibility and total darkness.
A surveillance perimeter could also be set up to alert the operator of approaching vessels. Recording and storing images either constantly or when movement is detected to save data storage, therefore, having reference to any activities and or accidents creating a safer working environment.
Evica’s S200/S300 series utilises a standard military pintal mount ensuring stability and ease of movement. The pintal mount search light has been specifically developed for search and rescue ribs, tenders and also to enhance visibility when undertaking close proximity navigation on larger vessels.
The S200 has the facility to provide a wide and narrow beam for search and rescue applications, with an output of 10,000 lumens. The S200, due to its low power consumption is ideal for smaller vessels. In addition it can be utilised with Evica’s high powered battery pack and portable suction base, this enables the operator to deploy the search light in the event of an emergency, while also being able to position the light appropriately.
Pintle Mount
